Ampd Bros ACE Adventure Series 5
$3,299.00
Unit price
/
Unavailable
By AMPD BROS
Couldn't load pickup availability
Description

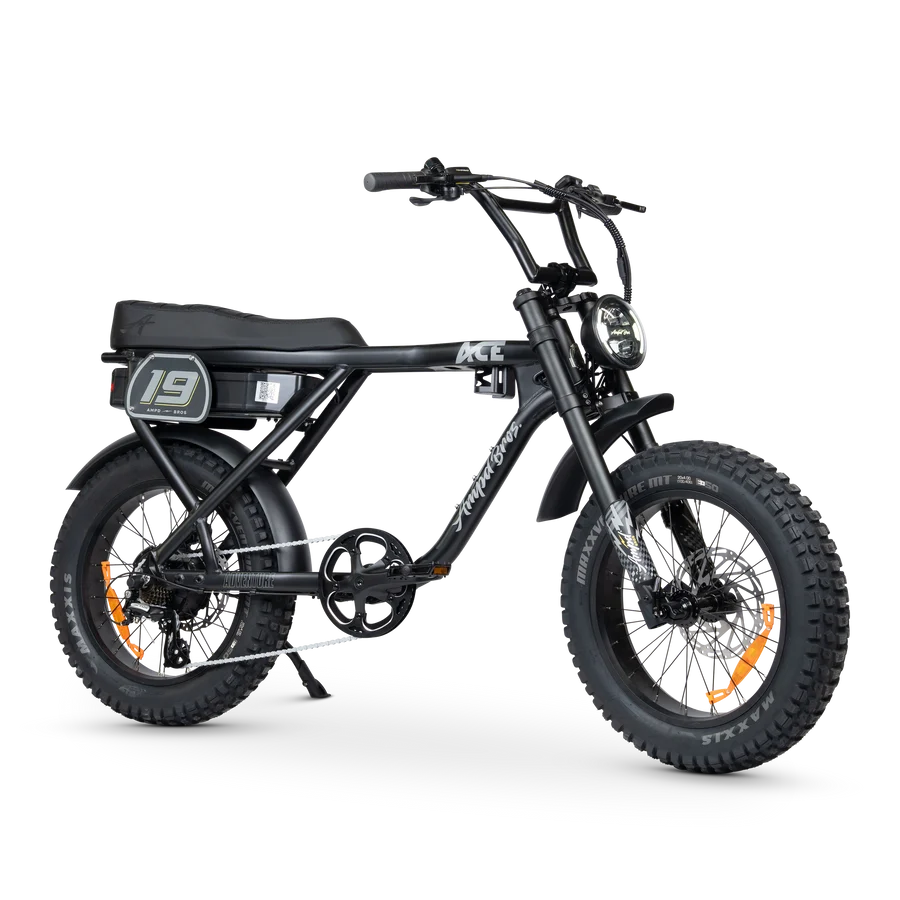

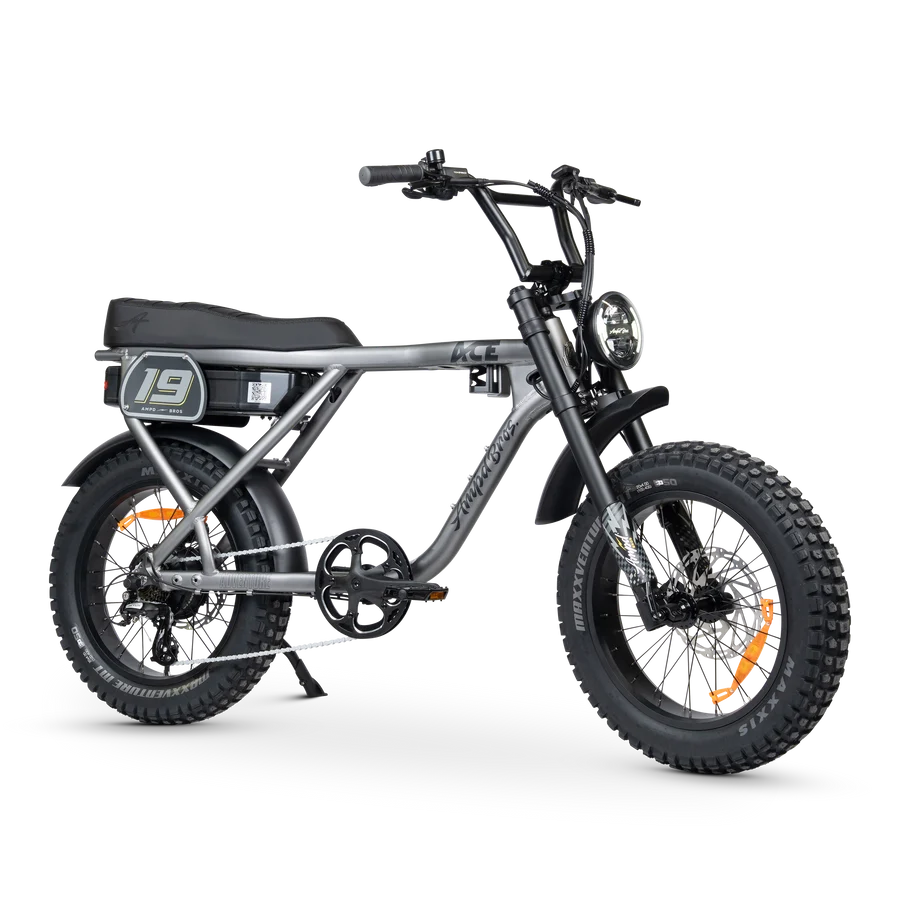

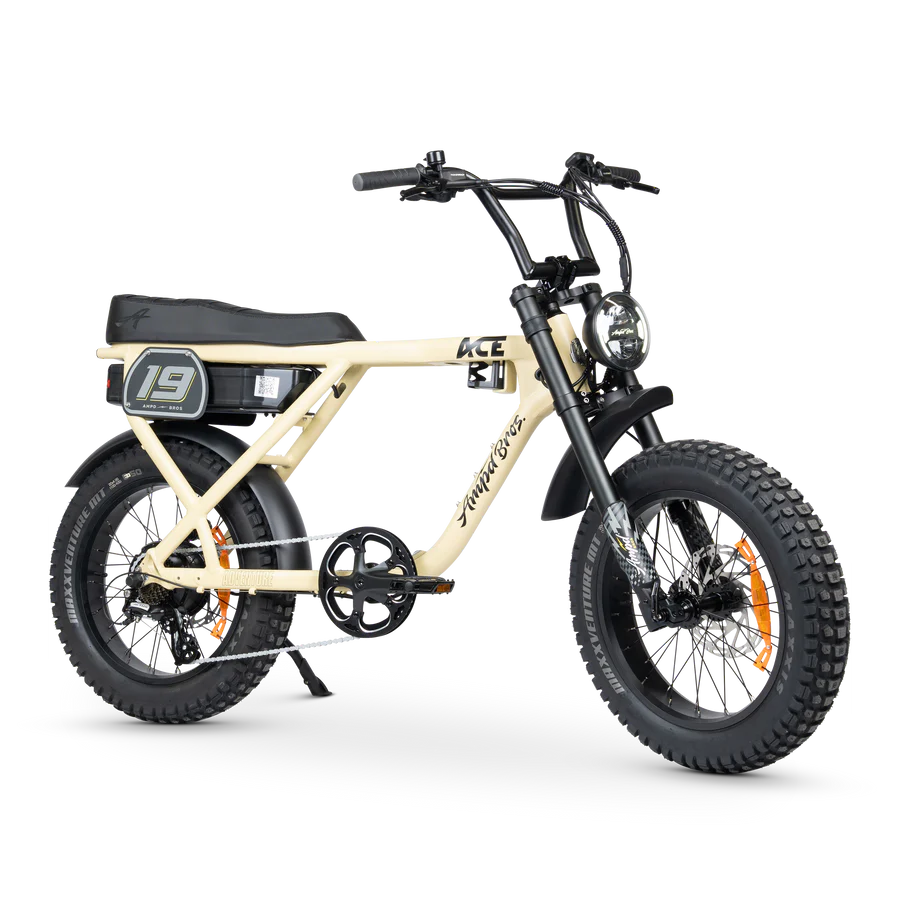

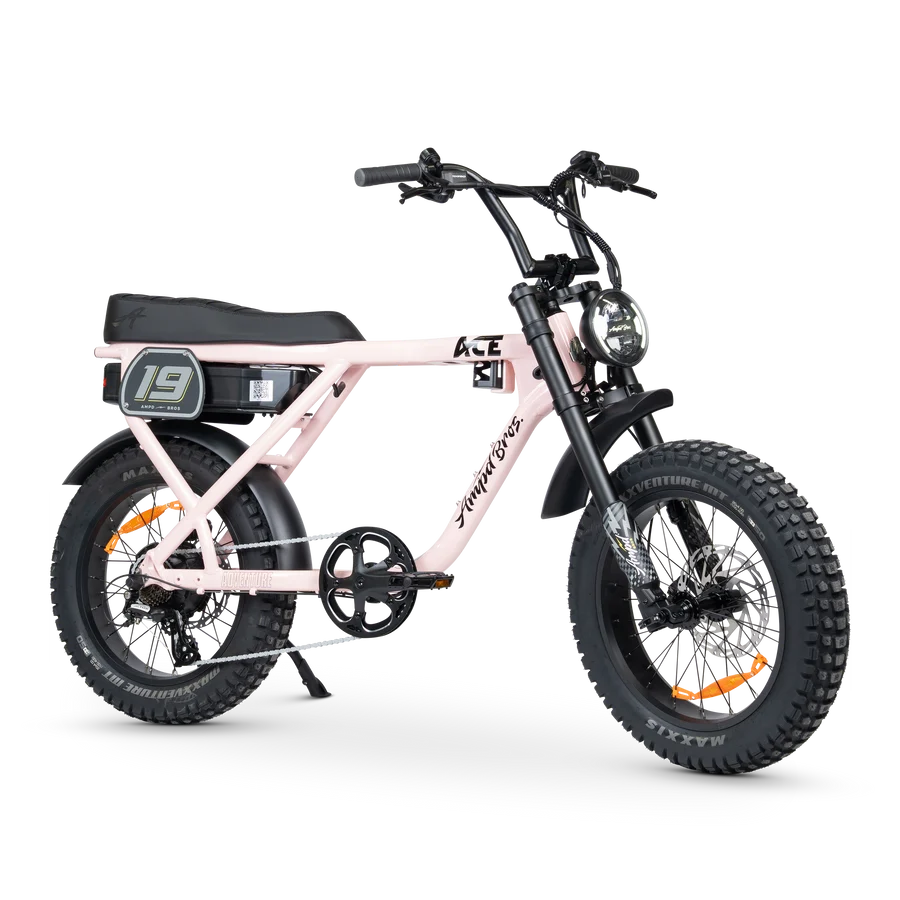

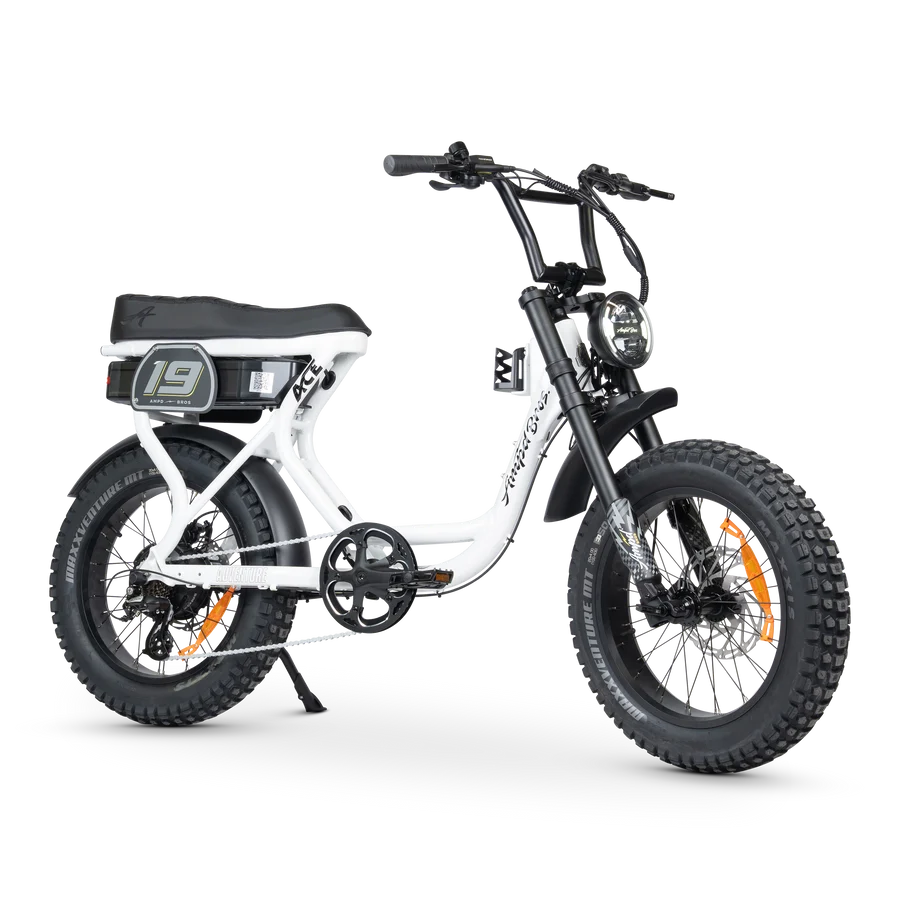

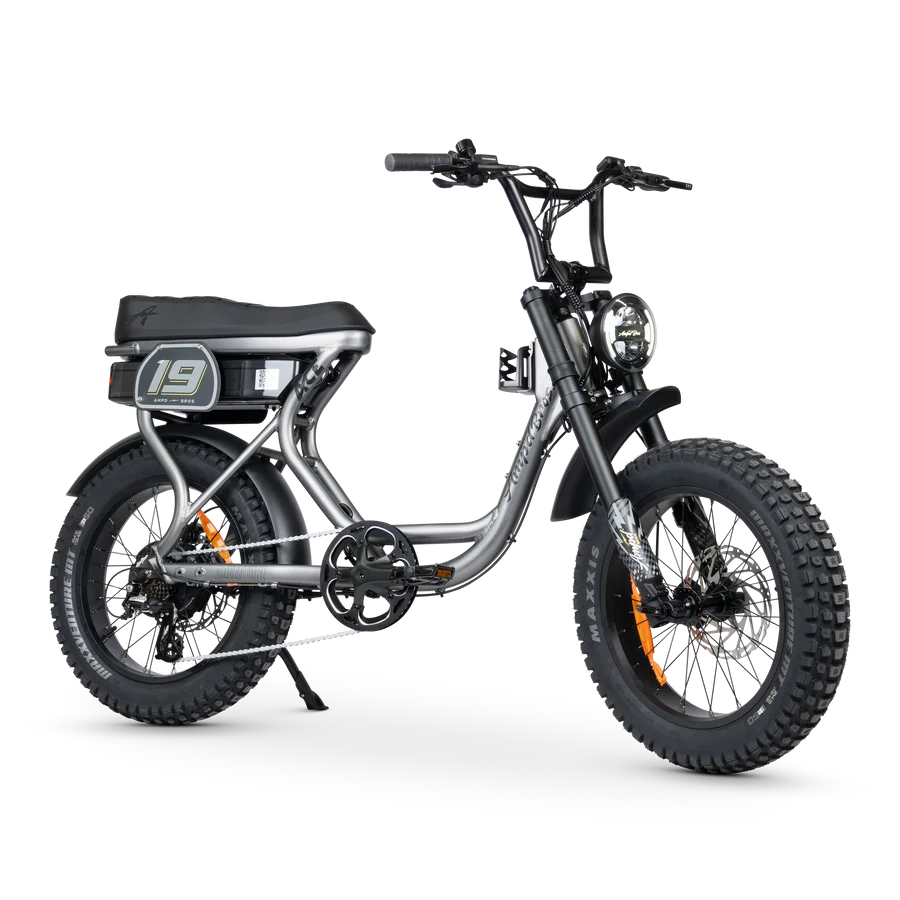

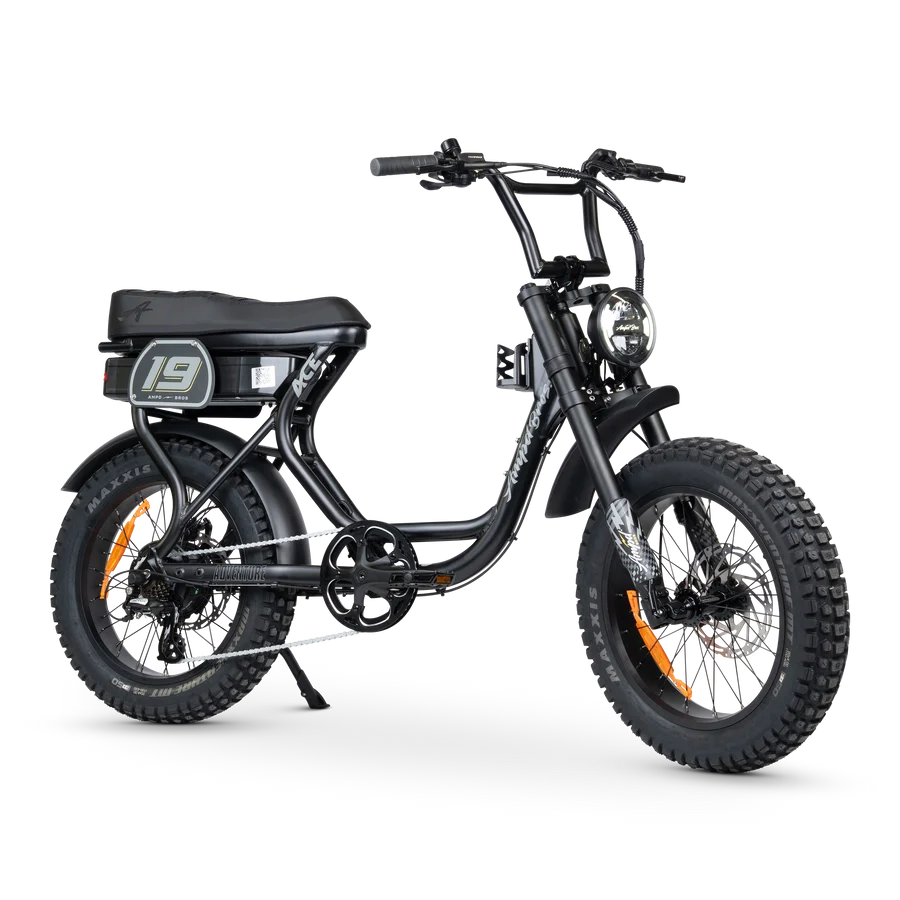

ACE PRO Series 5 | Dual Suspension Dual Seat Fat Tyre Electric Bike
The flagship of the ACE Series. Max comfort. Max range. Max capability. The ACE PRO Series 5 is built for two riders, with up to 100km of range from a 4th Gen 48V 24.5Ah (1176Wh) Samsung battery and 95Nm of Bafang torque. Fully adjustable front and rear suspension keeps the ride smooth on paths, sand and rough tracks, and the Ampd Bros GO app lets you control and track your bike from your phone.
Highlights
- Dual seat, built for two riders
- Up to 100km range from a 4th Gen 48V 24.5Ah (1176Wh) Samsung 21700 battery
- Fully removable battery
- 95Nm Bafang rear hub motor
- Hill Boost for extra climbing torque, activated by holding the minus button
- Fully adjustable front and rear suspension
- 4-piston hydraulic disc brakes with 203mm rotors
- 3.5" Ultra Colour LCD display
- Ampd Bros GO app with smart control, digital key, live GPS tracking and live alerts
- Parental controls to limit speed
- Adjustable cup holder
- LED headlight with daytime running lamp and low beam
Choose Your Frame and Colour
| Frame | Step Over (traditional) or Step Through (easy mount) |
|---|---|
| Colour | Titanium, Bronze Eclipse, Matte Black, Jungle Eclipse, Raw, Midnight Black, Mint Metallic, Ice White |
Certification
| E-bike certificate | SGS-260939-EA |
|---|---|
| Battery certificate | SGS-260888-EA |
| Charger certificate | GMA-515173-EA |
| Model | EBK02-ACE PRO (e-bike), HL4825-4 (battery), DPLC165V55-M (charger) |
Only use with the approved battery and charger listed on the certificate.
Street Configuration
| Continuous output | 250W |
|---|---|
| Pedal assist | Limited to 25km/h |
| Throttle | Walk assist limited to 6km/h |
Specifications
| Series | Series 5 |
|---|---|
| Seating | Dual seat, 2 riders |
| Wheel size | 20" |
| Motor | Bafang rear hub, 95Nm |
| Battery | 48V 24.5Ah (1176Wh), 4th Gen Samsung 21700 cells, removable |
| Range | Up to 100km |
| Display | 3.5" Ultra Colour LCD |
| Transmission | Shimano Altus 7-speed |
| Shifter | Shimano Rapid Fire |
| Suspension | Fully adjustable front and rear |
| Brakes | 4-piston hydraulic disc, 203mm rotors |
| Headlight | 230 lux / 8.5W LED |
| Seat height | 890–950mm |
| Max loading | 180kg |
| Bike weight | 54.5kg |
Size Guides
Step Over (X frame)
Step Through (S frame)
Test Ride or Order
Book a test ride in store or order online. Not sure which frame suits you? Get in touch and we'll help you choose.
