AMPD Bros ACE-X Mini Series 5
$2,399.00
Unit price
/
Unavailable
Couldn't load pickup availability
Description

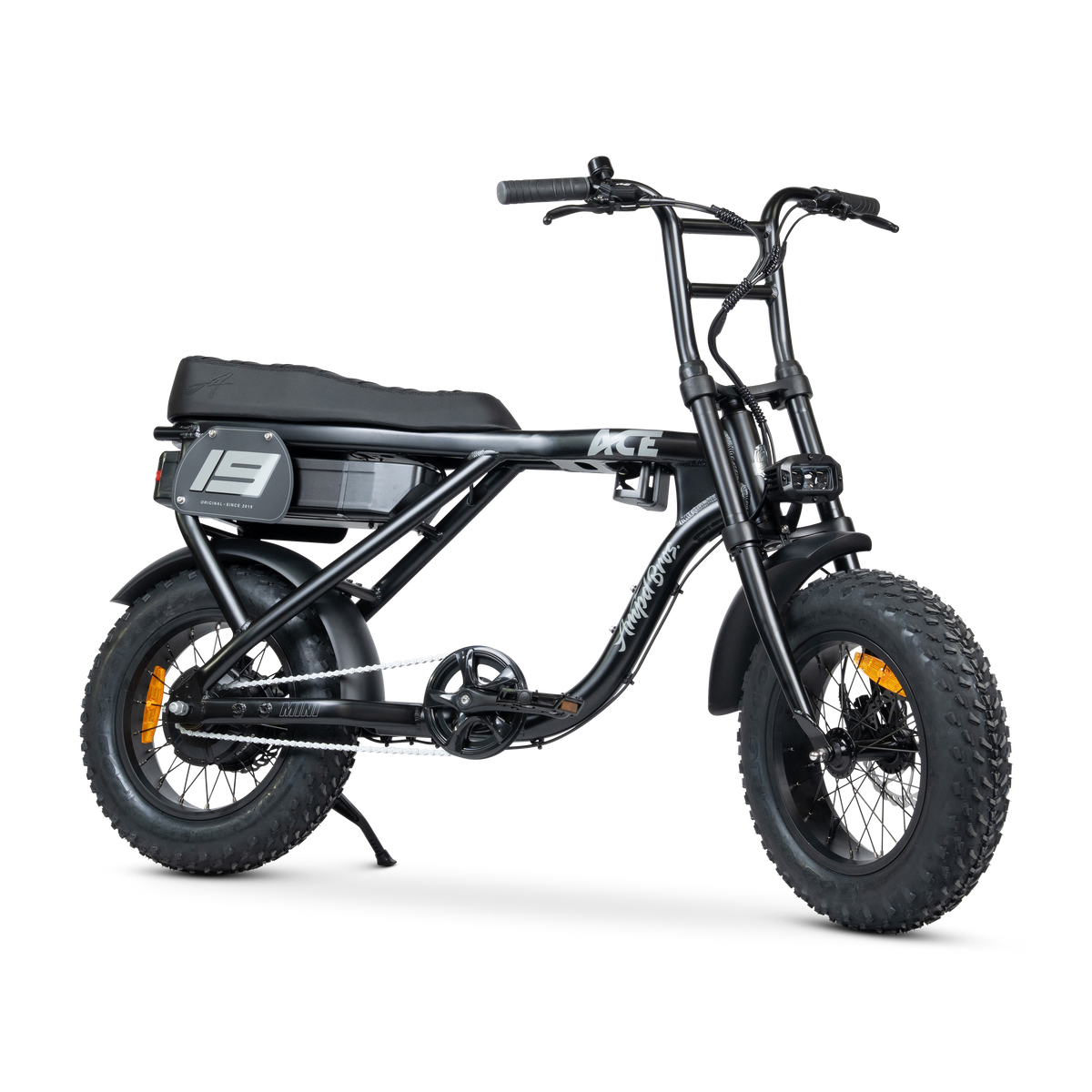

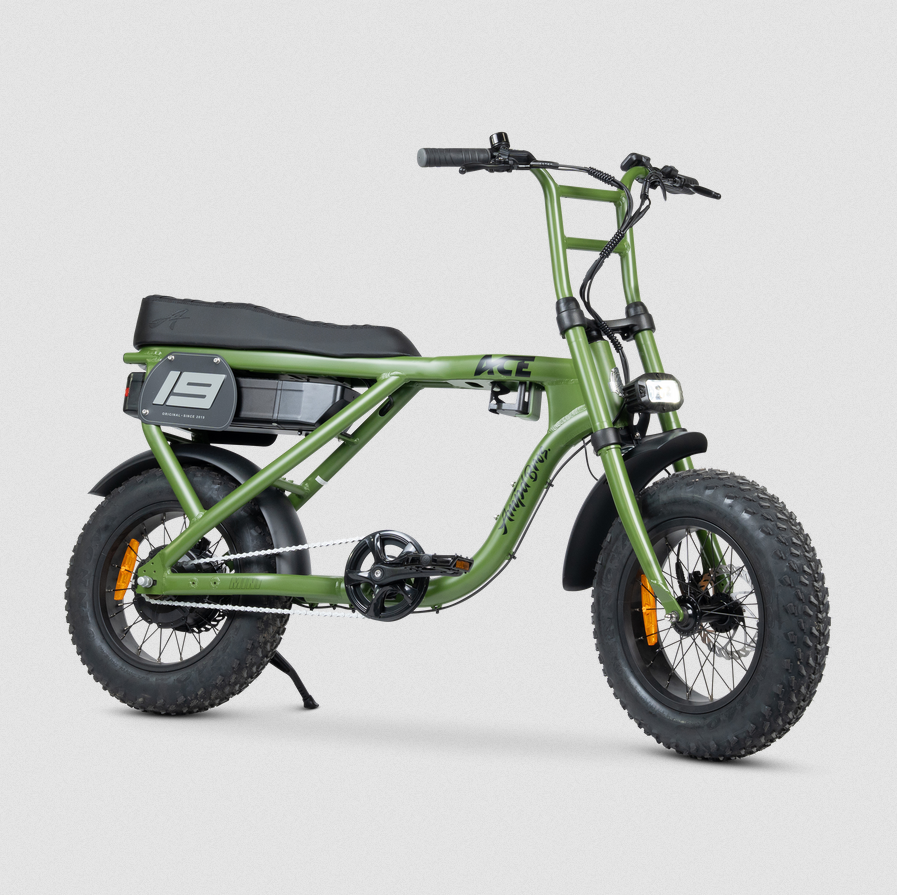

ACE Mini Series 5 | Dual Seat 16" Fat Tyre Electric Bike
Compact by nature. Powerful by design. Built for two. The ACE Mini Series 5 is a dual-seat fat tyre electric bike with up to 60km of range and a colour LCD display. Its 65Nm Bafang rear hub motor, 48V 15Ah Samsung battery and Hill Boost make it a comfortable ride for beachside cruising, family outings and everyday errands. Choose your frame style and colour below.
Highlights
- Dual seat with a grip seat designed for two riders
- Up to 60km range from a 48V 15Ah Samsung 21700 battery
- Fully removable battery, charge on or off the bike
- 65Nm Bafang rear hub motor
- Hill Boost for extra climbing torque, activated by holding the minus button
- 2" colour LCD display with speed, battery and trip data
- 17W LED headlight with daytime running lamp and low beam
- Integrated rear brake and tail light built into the battery pack
- 2-piston hydraulic disc brakes with 160mm rotors
- Parental controls to limit speed
- 2 year nationwide warranty
Choose Your Frame and Colour

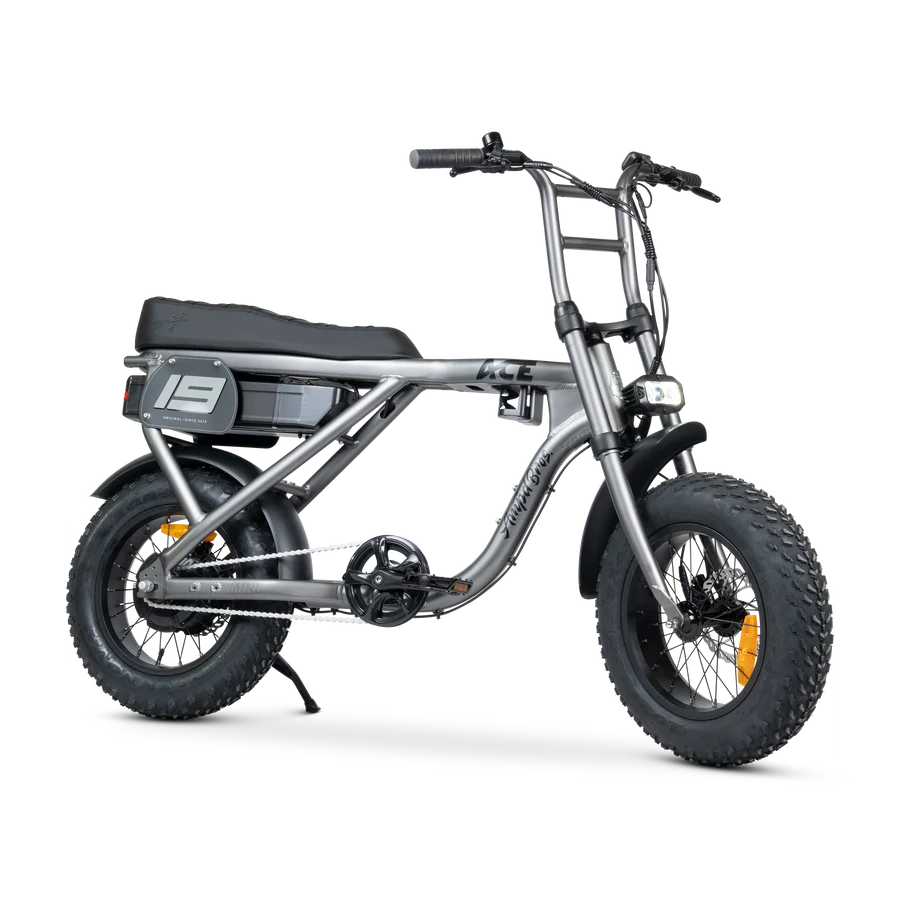

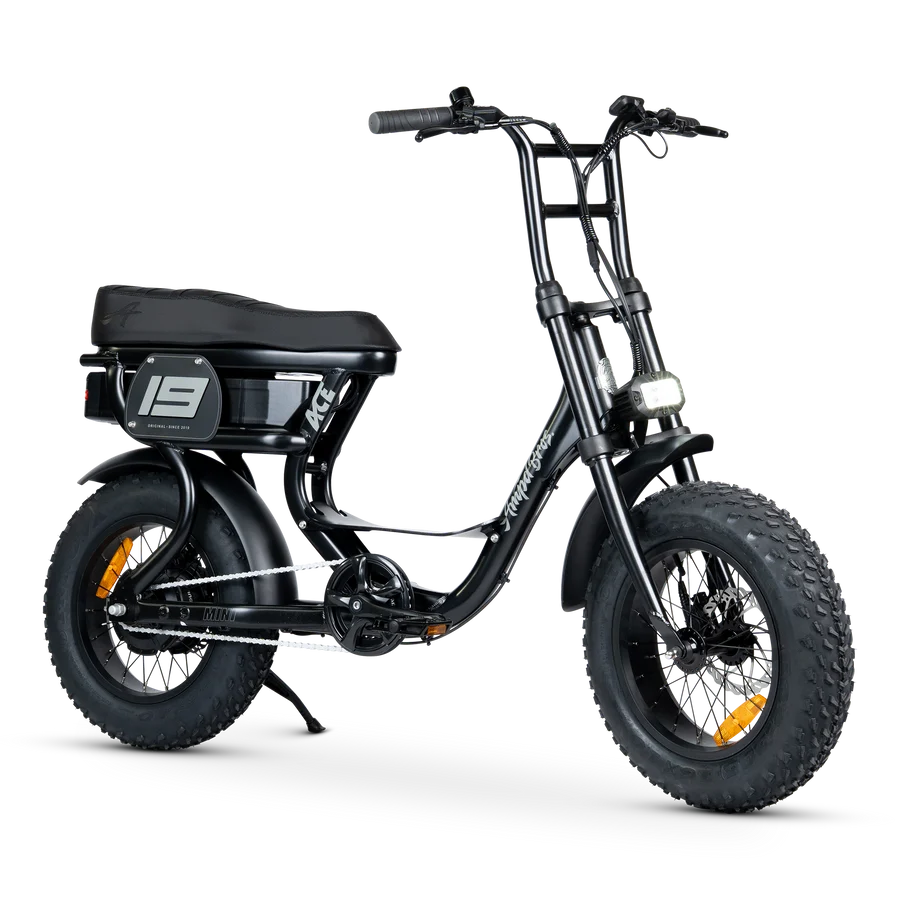

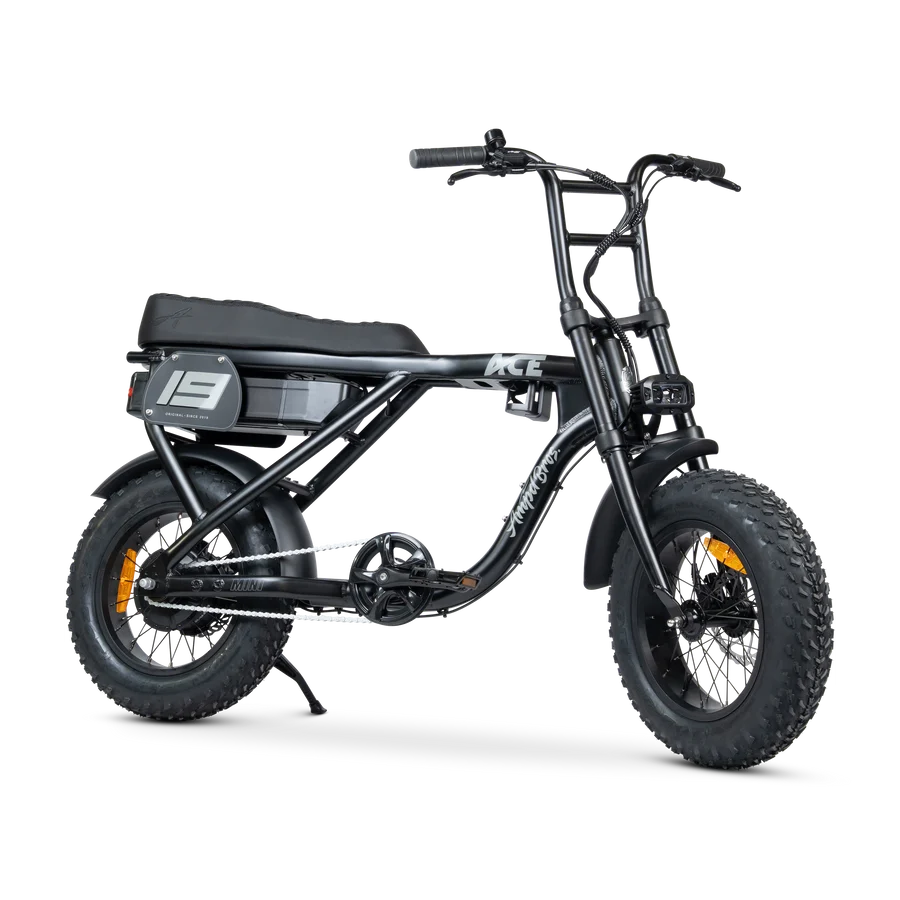

| Frame | Step Over (traditional) or Step Through (easy mount) |
|---|---|

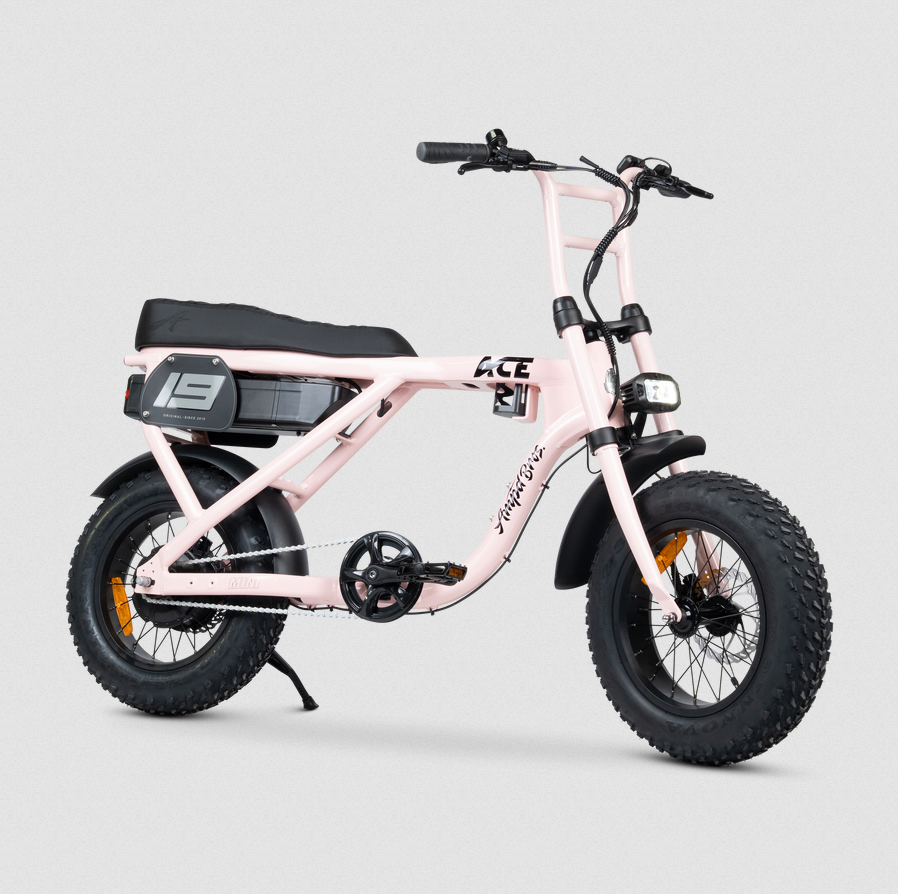

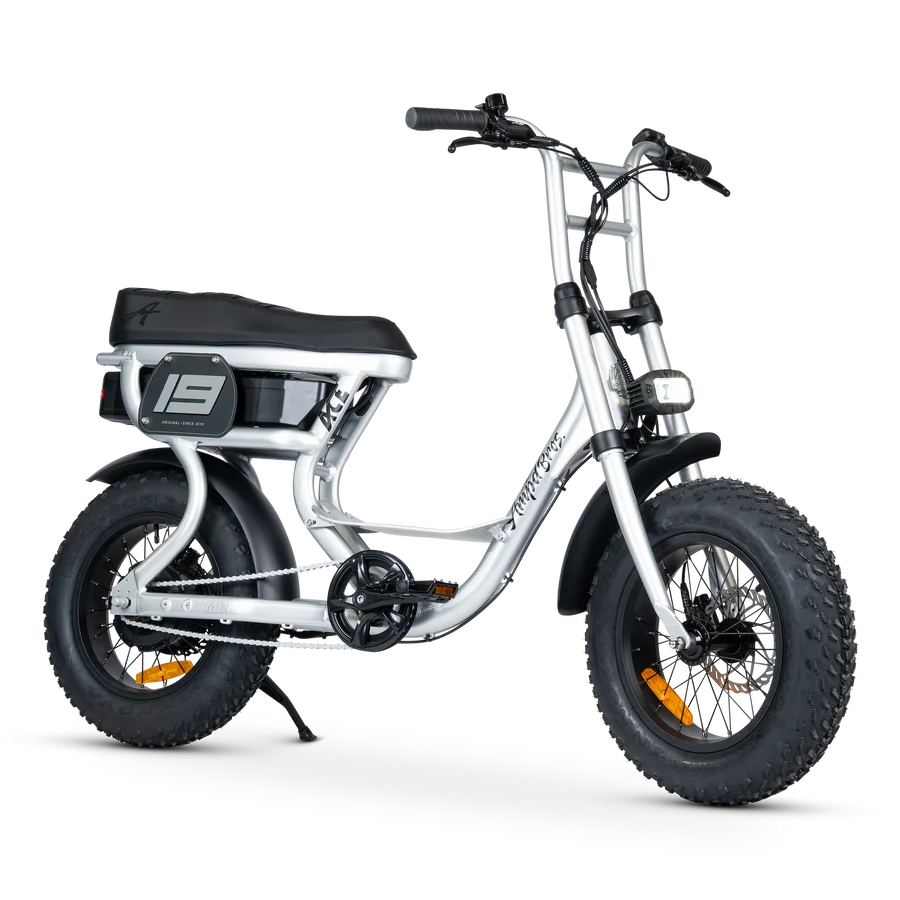

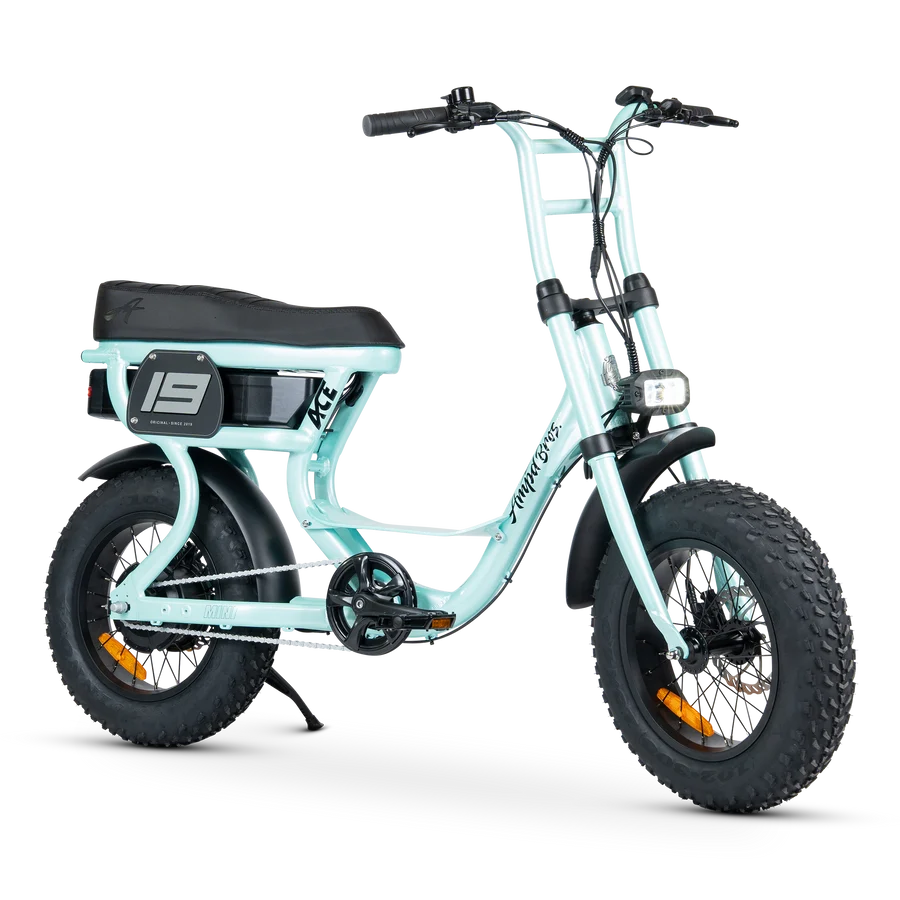

| Colour | Matte Black, Titanium, Combat Green, Pale Pink, Matte Silver, Mint Metallic |
Street Configuration
| Continuous output | 250W |
|---|---|
| Pedal assist | Limited to 25km/h |
| Throttle | Walk assist limited to 6km/h |
Specifications
| Series | Series 5 |
|---|---|
| Seating | Dual seat, 2 riders |
| Wheel size | 16" fat tyre |
| Motor | Bafang rear hub, 65Nm |
| Battery | 48V 15Ah, Samsung 21700 cells, fully removable |
| Range | Up to 60km |
| Display | 2" colour LCD |
| Transmission | Fixed single speed |
| Brakes | 2-piston hydraulic disc, 160mm rotors |
| Suspension | None |
| Seat height | 730mm |
| Max loading | 120kg |
| Bike weight | 37.5kg |
| Warranty | 2 years nationwide |
Lighting
- Aluminium LED projector headlight, 17W, 270 lux
- Daytime running lamp and low beam
- Integrated rear brake and tail light
Included
- Battery
- Charger (Australian plug)
- Basic tool kit
- Owner's manual with links to assembly videos

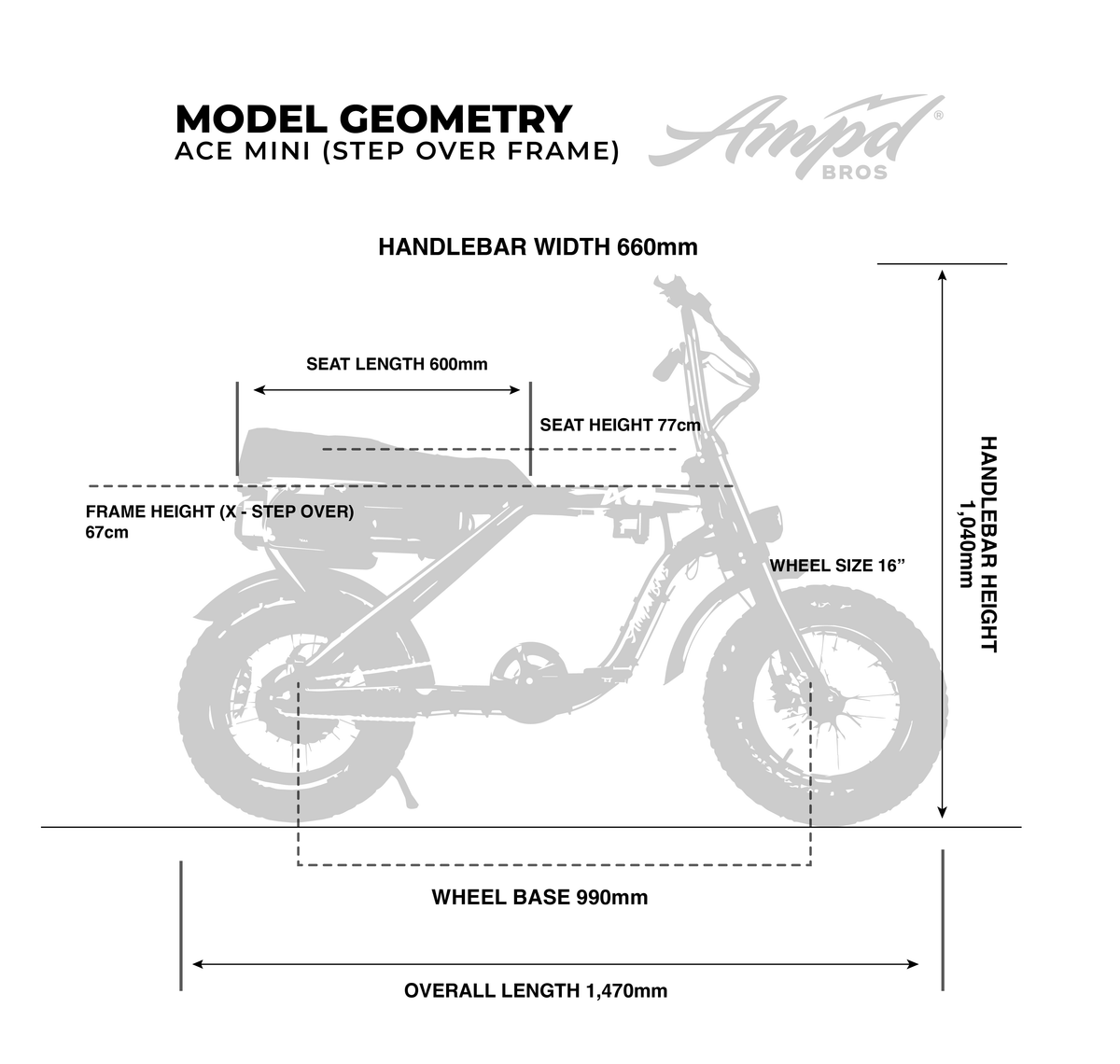

Size Guide
Test Ride or Order
Book a test ride in store or order online. Not sure which frame suits you? Get in touch and we'll help you choose.
