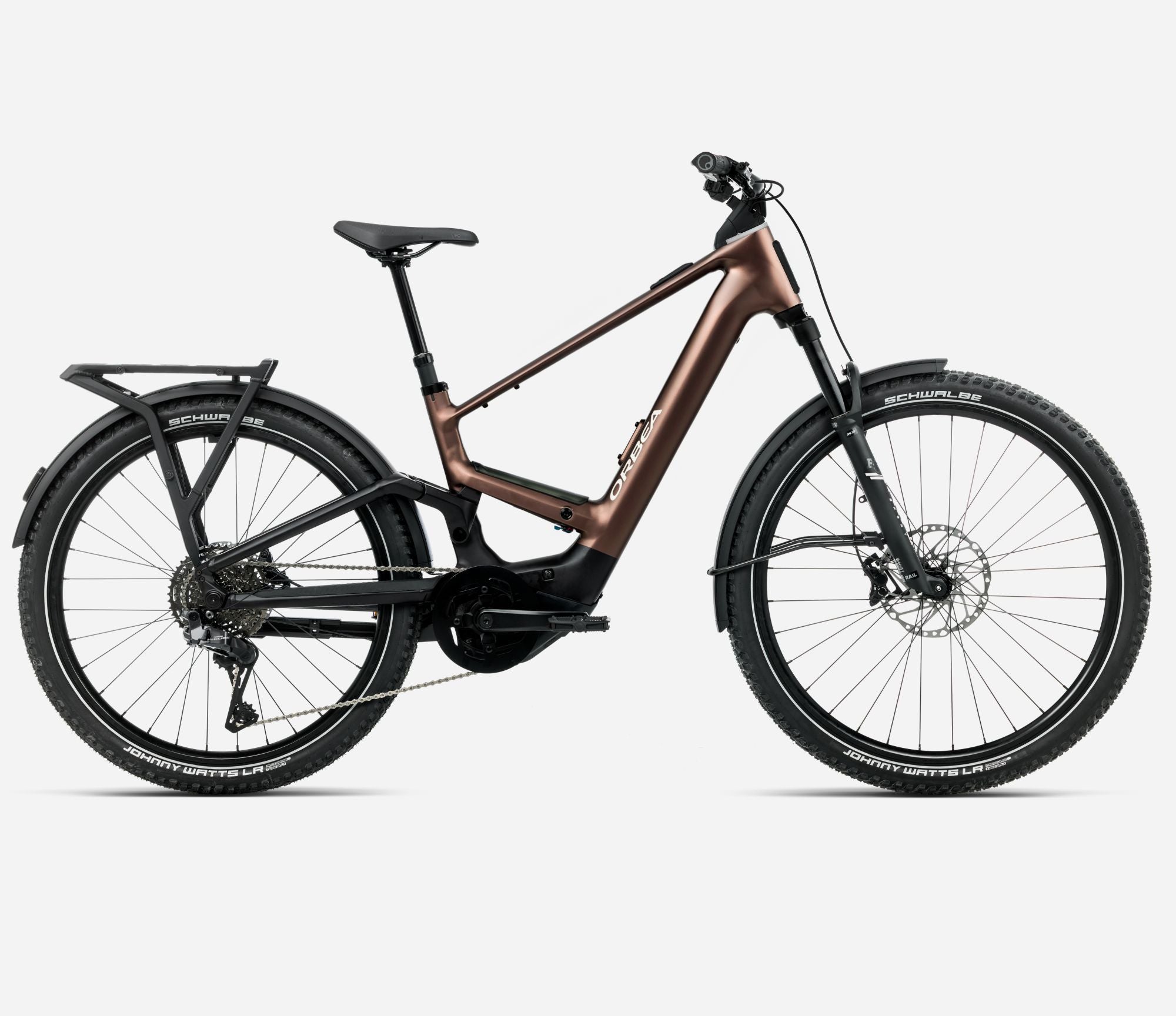

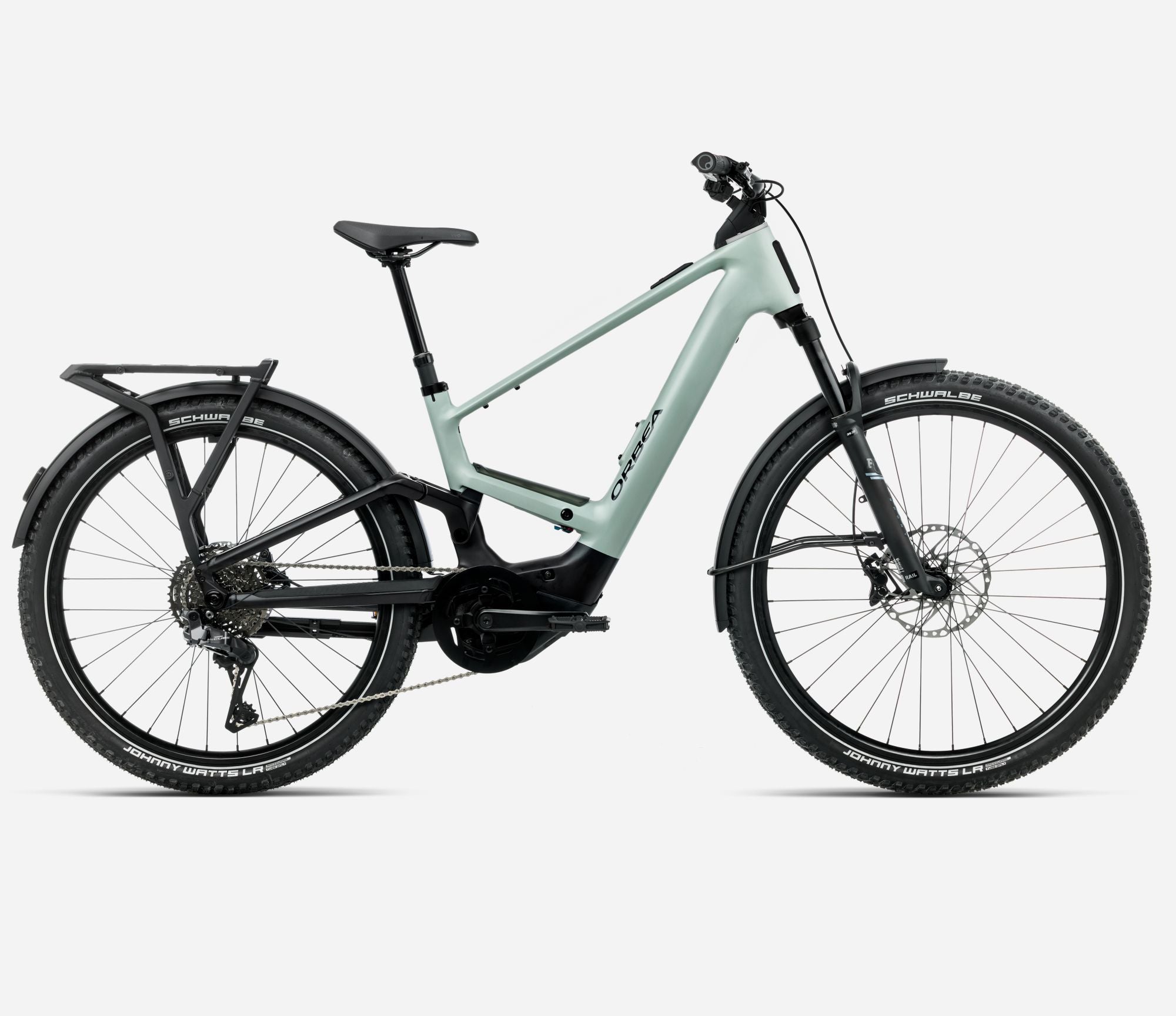

ORBEA MUGA 20

$10,905.00
By Orbea
Colour
Size
Description

Specs

Frameset

Frame

Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible.

Shock

Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm

Fork

Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Battery

Bosch Powertube 750Wh Horizontal BBP3770

RANGE EXTENDER

N/A

Motor

Bosch Performance Line CX BDU3843

Display

Bosch System Controller BRC3100

CHARGER

Bosch Charger 4A (230V) BPC3400

Remote

Bosch Mini Remote BRC3300

Drivetrain

Chainring

Alloy BDU37/38 42t

Crank

Prowheel EB03 alloy

Shifters

Shimano EN605-R

Cassette

Shimano CS-LG400 11-45t 11-Speed

Rear derailleur

Shimano Cues Di2 U8050 11s SGS Shadow Plus

Chain

KMC eGlide

Cockpit

Handlebar

Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760

Computer Mount

Smartphone mount SP Connect SPC+

Brakes

Brakes

Shimano MT420 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Alloy, 26c, 32H

Tyres

Schwalbe Johnny Watts LR, 60-622, Reflective Tape

Tyres

Schwalbe Johnny Watts LR, 60-584, Reflective Tape

Accessories

Pedals

VP-892 Black with reflectors

Front carrier

N/A

Rear carrier

Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg

Mudguard

Curana Apollo Orbit 70mm

Front Position Light

Orbea Integrated

Front light

Supernova Starstream Pure, Low Beam

Rear light

Supernova TL3 Z

Quick stand

Orbea Integrated

Components

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever

OC Dropper Remote for Sram Matchmaker

Saddle

Selle Royal Vivo Ergo
