Amflow PR Carbon 2026

$6,999.00
By AMFLOW
Size
Description

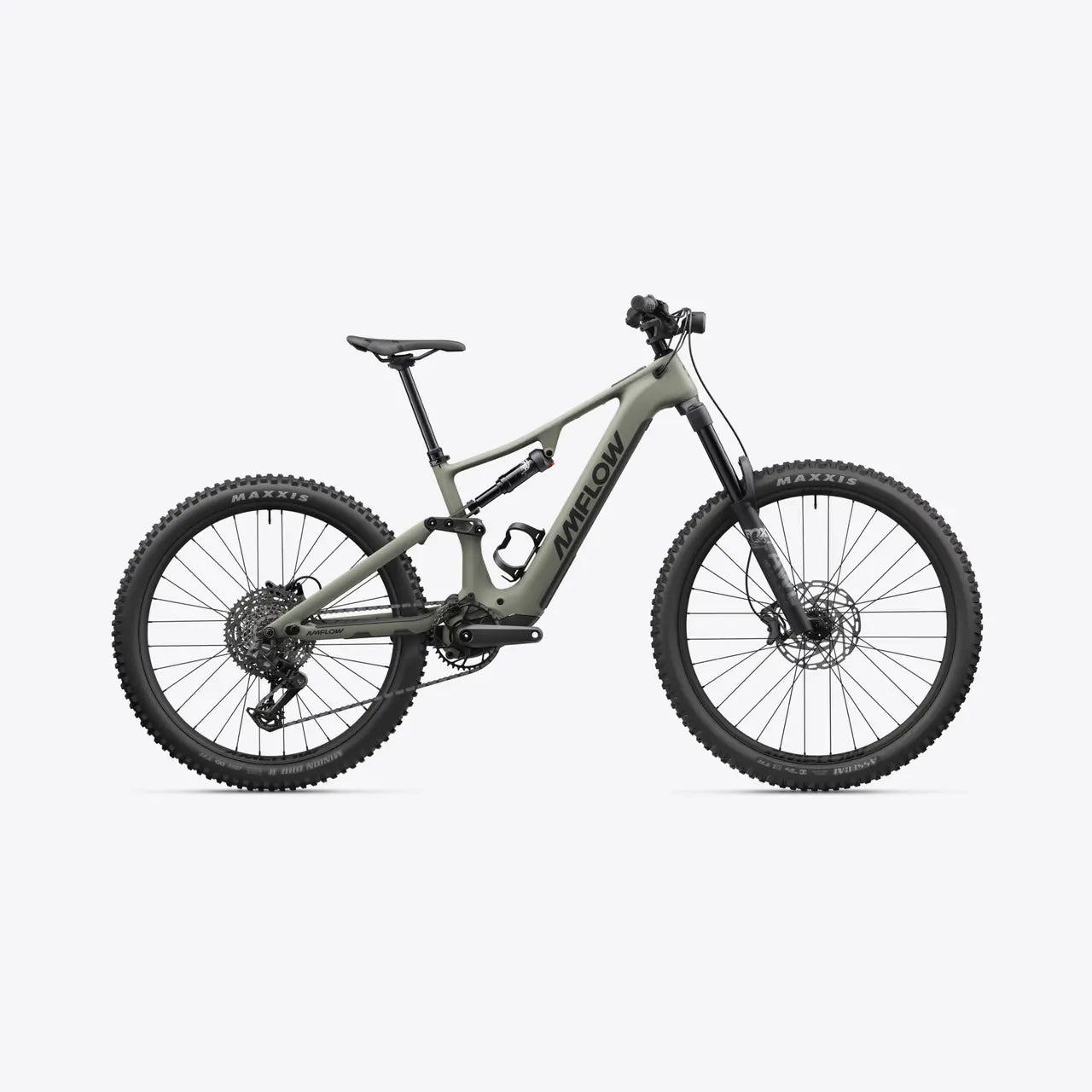

Amflow PR Carbon 2026 | Full-Carbon Mullet eMTB with 800Wh Removable Battery

Striking style. Carbon lightness. Freedom to ride further. The Amflow PR Carbon pairs a full-carbon frame with an Avinox M2 drive system and an 800Wh removable battery, so you can keep riding longer and charge on your terms. Adjustable geometry lets you fine-tune the bike for your terrain and riding style, and the mullet wheel setup balances rollover with agility.

Highlights

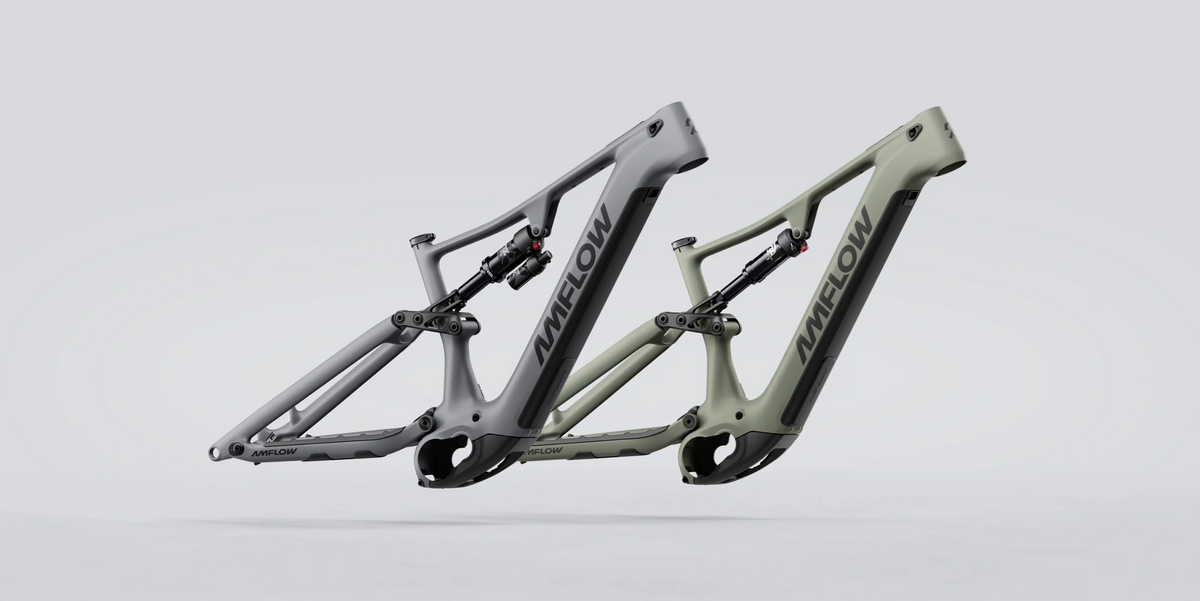

  • Full-carbon frame that weighs around 2.9kg (size M, frame only)
  • Up to 40 geometry configurations with 5 headset angle settings, 2 bottom bracket heights and 4 chainstay lengths
  • Avinox M2 drive unit with 110Nm nominal and 125Nm peak torque, and five assist modes
  • 800Wh removable battery with a slide-rail design and battery lock
  • Avinox 2-inch OLED control display with wireless left and right controllers
  • Auto mode that adapts assistance to road conditions and riding position
  • Mullet wheel setup: 29" front and 27.5" rear
  • SRAM Eagle Transmission drivetrain with SmoothShift for changing gears while coasting
  • Avinox Ride app with heart rate zone control, offline navigation and bike tracking
  • Apple Find My tracking, available on PR models

Geometry

M L XL XXL
Reach 452mm 475mm 500mm 527mm
Stack 626mm 637mm 649mm 662mm
Effective top tube 596.5mm 623.5mm 652.9mm 684.6mm
Seat tube length 405mm 425.3mm 445mm 464mm
Head tube length 111.4mm 123.6mm 136.9mm 151.3mm
Wheelbase 1227.9mm 1256.2mm 1287mm 1320.1mm
Standover height 782.5mm 788.9mm 791.5mm 799.1mm
Head tube angle 64.5° 64.5° 64.5° 64.5°
Effective seat tube angle 77° 76.9° 76.7° 76.6°
Chainstay length 440mm to 452mm (4 positions)
Bottom bracket height 349mm or 353mm (2 positions)
Fork length 576mm

Motor and Battery

Drive unit Avinox M2, 110Nm nominal, 125Nm peak
Drive unit weight 2.65kg
Assist modes Five, including Auto mode
Battery Avinox RS800 removable, 800Wh
Charger Avinox 4A / 168W
Display 2-inch OLED control display with wireless left and right controllers
Certification Drive system certified by TÜV SÜD, chargers by TÜV Rheinland

Components

Frame colour Moss Green
Fork FOX AWL HD Sport, 160mm, RAIL 2.0 damper, Sweep/LSR adjustment, 15x110mm, 44mm offset
Rear shock FOX Float Rhythm, custom tune, LSR adjustment, 210x55mm air
Rear derailleur SRAM S1000 Eagle Transmission
Shifting SRAM AXS Pod Controller
Chainring SRAM Eagle Transmission DM 38T for Avinox
Cassette SRAM XS-1270 Eagle Transmission, 10-52T
Chain SRAM Eagle 70 Transmission Flattop
Crankset Avinox SL crank, 155mm (M/L), 160mm (XL/XXL)
Brakes Tektro TKD173 hydraulic disc, 4-piston, with 203mm sensor rotors
Wheels Amflow XMA-30 mullet, tubeless ready, 30mm internal width, SAPIM E-Light spokes
Tyres Maxxis Assegai 2.50" front (MaxxGrip, EXO+, TR), Maxxis DHR II 2.50" rear, 27.5" (MaxxTerra, DD, TR)
Handlebar Amflow Enduro alloy, 800mm, 40mm rise, 5° upsweep, 9° backsweep
Stem Amflow split stem, 35mm
Grips Amflow Enduro Grip 2, lock-on
Saddle Amflow mountain saddle
Dropper post Amflow dropper with shim-adjustable travel (0, 5, 10, 15 or 20mm). Post length 190mm (M), 210mm (L/XL), 230mm (XXL)
Lights Avinox front light and rear light

Included

  • Front light
  • Amflow bottle cage
  • Two battery keys
  • Torque wrench
  • Shock pump
  • Frame protection film
  • 5/10mm dropper spacer
  • Quick start guide

Test Ride or Order

Book a test ride in store or order online. Not sure which size suits you? Get in touch and we'll help you choose.
