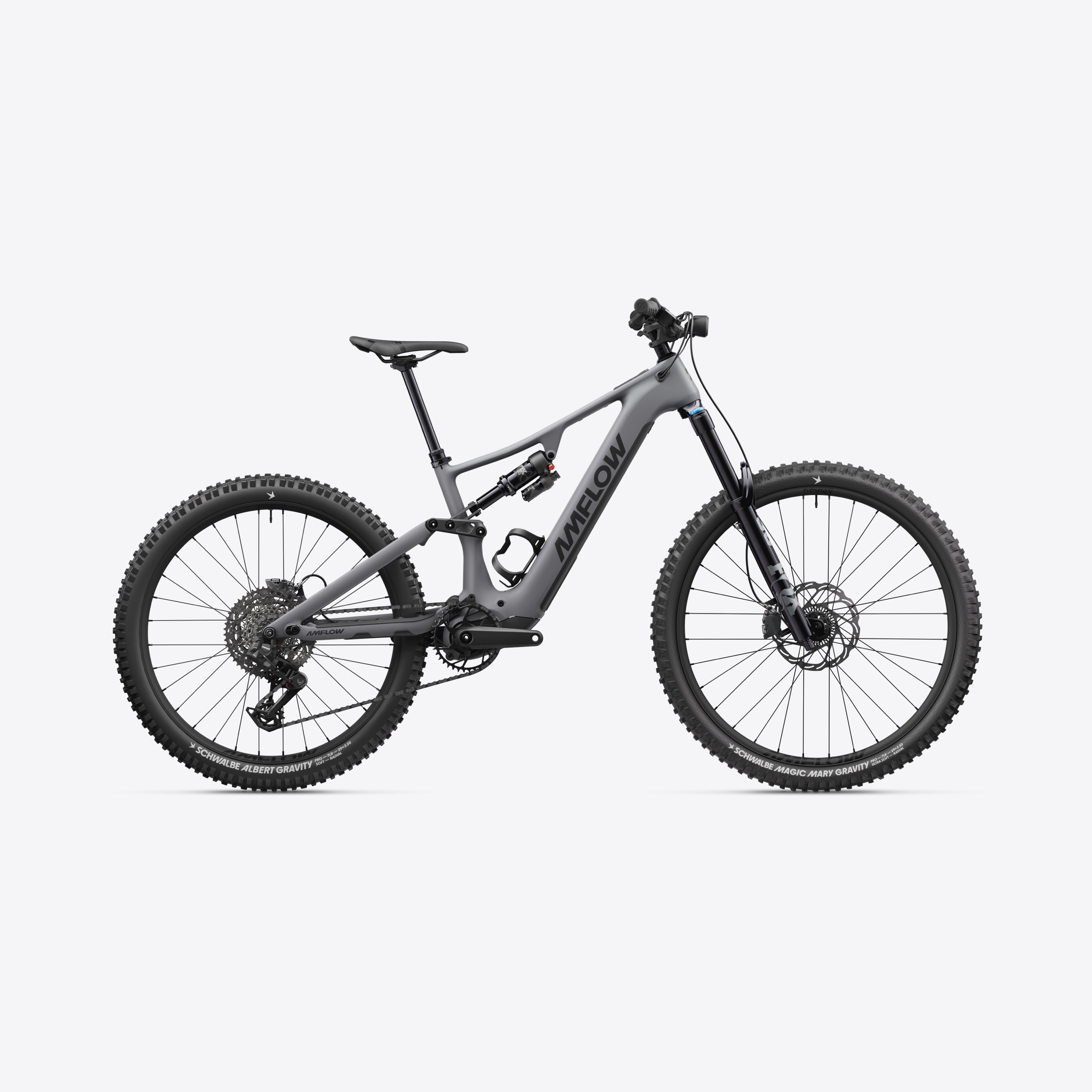

Amflow PR Carbon Pro 2026 | Full-Carbon Mullet eMTB with M2S Drive and Removable 800Wh Battery

Striking design. Serious power. Ride further. The Amflow PR Carbon Pro combines a full-carbon frame with the Avinox M2S drive unit, delivering up to 150Nm of torque and 1500W of peak power. The removable 800Wh battery can be charged off the bike or swapped on the trail, and Apple Find My tracking helps you keep an eye on your bike. Adjustable geometry lets you tune the bike to your terrain and riding style.

Highlights

  • Full-carbon frame at around 2.9kg (size M, frame only)
  • Avinox M2S drive unit with 130Nm nominal and 150Nm peak torque, plus 250W rated power
  • Up to 1500W peak power in Trail, Turbo, Auto and Boost modes
  • Removable 800Wh RS800 battery for charging off the bike or quick swaps
  • SmoothShift, which lets you change gears while coasting
  • Up to 40 geometry configurations with 5 headset angle settings, 2 bottom bracket heights and 4 chainstay lengths
  • FOX 36 Performance fork with GRIP damper, 160mm travel
  • FOX Float X Performance shock with custom tune, LSR adjustment and 2-position lever
  • Magura Gustav Pro four-piston brakes with 203mm sensor rotors
  • Mullet compatible, 29" front and 27.5" rear
  • Apple Find My tracking, exclusive to PR models
  • 2-inch OLED control display with wireless left and right controllers

Sizes and Geometry

M L XL XXL
Reach 452mm 475mm 500mm 527mm
Stack 626mm 637mm 649mm 662mm
Effective top tube 596.5mm 623.5mm 652.9mm 684.6mm
Seat tube length 405mm 425.3mm 445mm 464mm
Head tube length 111.4mm 123.6mm 136.9mm 151.3mm
Wheelbase 1227.9mm 1256.2mm 1287mm 1320.1mm
Standover height 782.5mm 788.9mm 791.5mm 799.1mm
Head tube angle 64.5° 64.5° 64.5° 64.5°
Effective seat tube angle 77° 76.9° 76.7° 76.6°
Chainstay length 440mm to 452mm (4 positions)
Bottom bracket height 349mm or 353mm (2 positions)
Crank length 155mm (M/L), 160mm (XL/XXL)
Frame colour Basalt Gray

Motor and Battery

Drive unit Avinox M2S, 130Nm nominal, 150Nm peak
Rated power 250W
Peak power 1500W in Trail, Turbo, Auto and Boost modes
Battery Avinox RS800 removable, 800Wh
Display 2-inch OLED control display with wireless left and right controllers
Charger Avinox fast charger, 12A / 508W
Noise Quiet operation

Suspension and Brakes

Fork FOX 36 Performance, 160mm, GRIP damper, Sweep/LSR adjustment, 15x110mm, 44mm offset
Rear shock FOX Float X Performance, custom tune, LSR adjustment, 210x55mm air, 2-position lever
Brakes Magura Gustav Pro hydraulic disc, 4-piston calipers
Rotors Magura sensor rotor, 203mm, 2.5mm

Drivetrain and Wheels

Rear derailleur SRAM S1000 Eagle Transmission, with Avinox M2 series power cable
Shifting SRAM AXS Pod Controller
Chainring SRAM Eagle Transmission DM 38T for Avinox
Cassette SRAM XS-1270 Eagle Transmission, 10-52T
Chain SRAM Eagle 70 Transmission Flattop
Cranks Avinox SL crank, 155mm (M/L), 160mm (XL/XXL)
Wheels Amflow XMA-30 mullet, alloy, 30mm internal width, 32H, tubeless ready, SAPIM E-Light spokes
Tyres Schwalbe Magic Mary 29x2.5" front and Schwalbe Albert 27.5x2.5" rear, Gravity Pro, tubeless ready

Cockpit and Finishing Kit

Handlebar Amflow Enduro alloy, 40mm rise, 800mm width, 35mm diameter, 5° upsweep, 9° backsweep
Stem Amflow mountain split stem, 35mm length, 35mm clamp
Grips Amflow Enduro Grip 2 lock-on
Saddle Amflow mountain saddle
Dropper Amflow dropper post, shim-adjustable travel (0/5/10/15/20mm). M 190mm, L/XL 210mm, XXL 230mm



Test Ride or Order

Book a test ride in store or order online. Not sure which size suits you? Get in touch and we'll help you choose.
