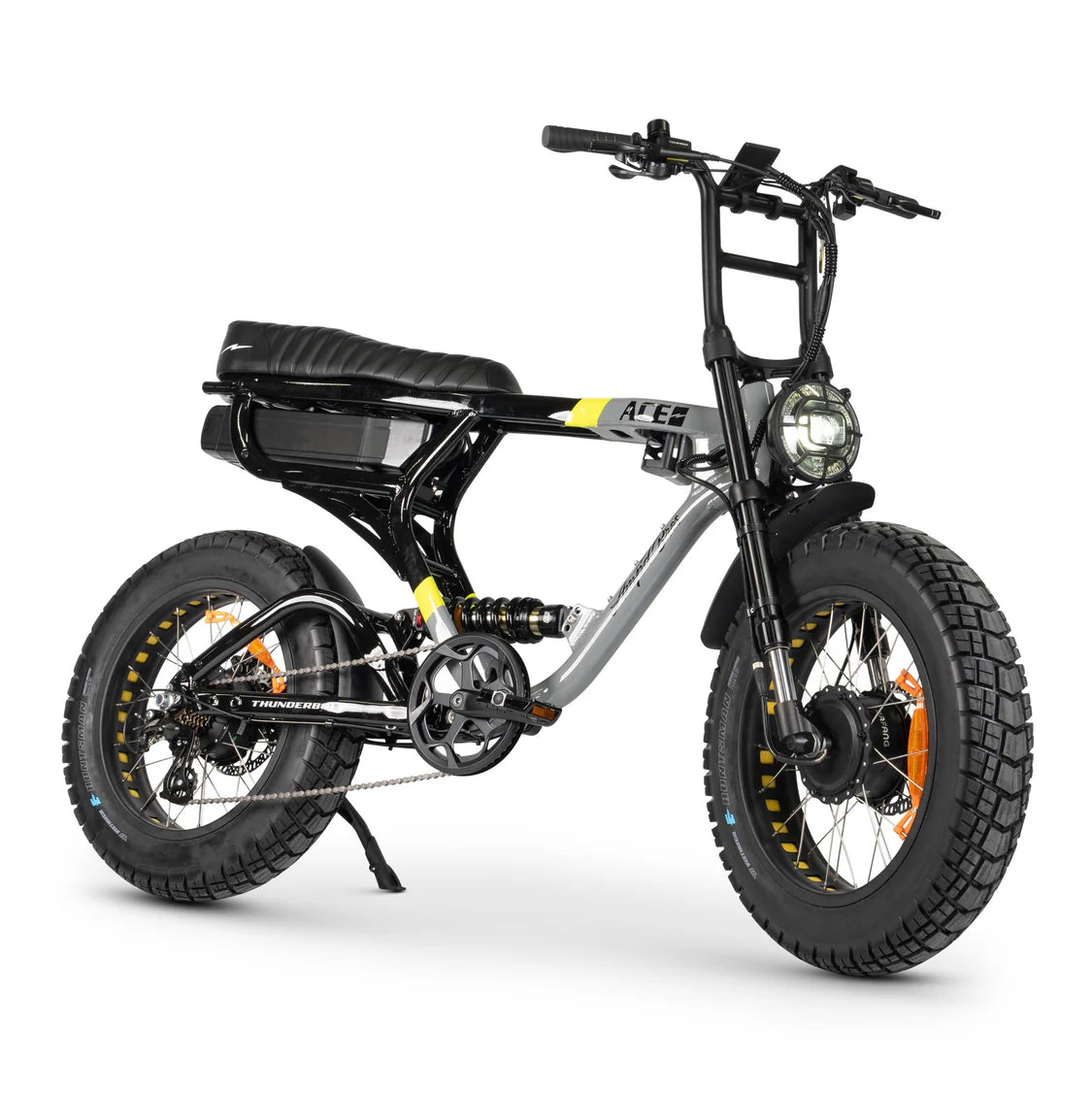

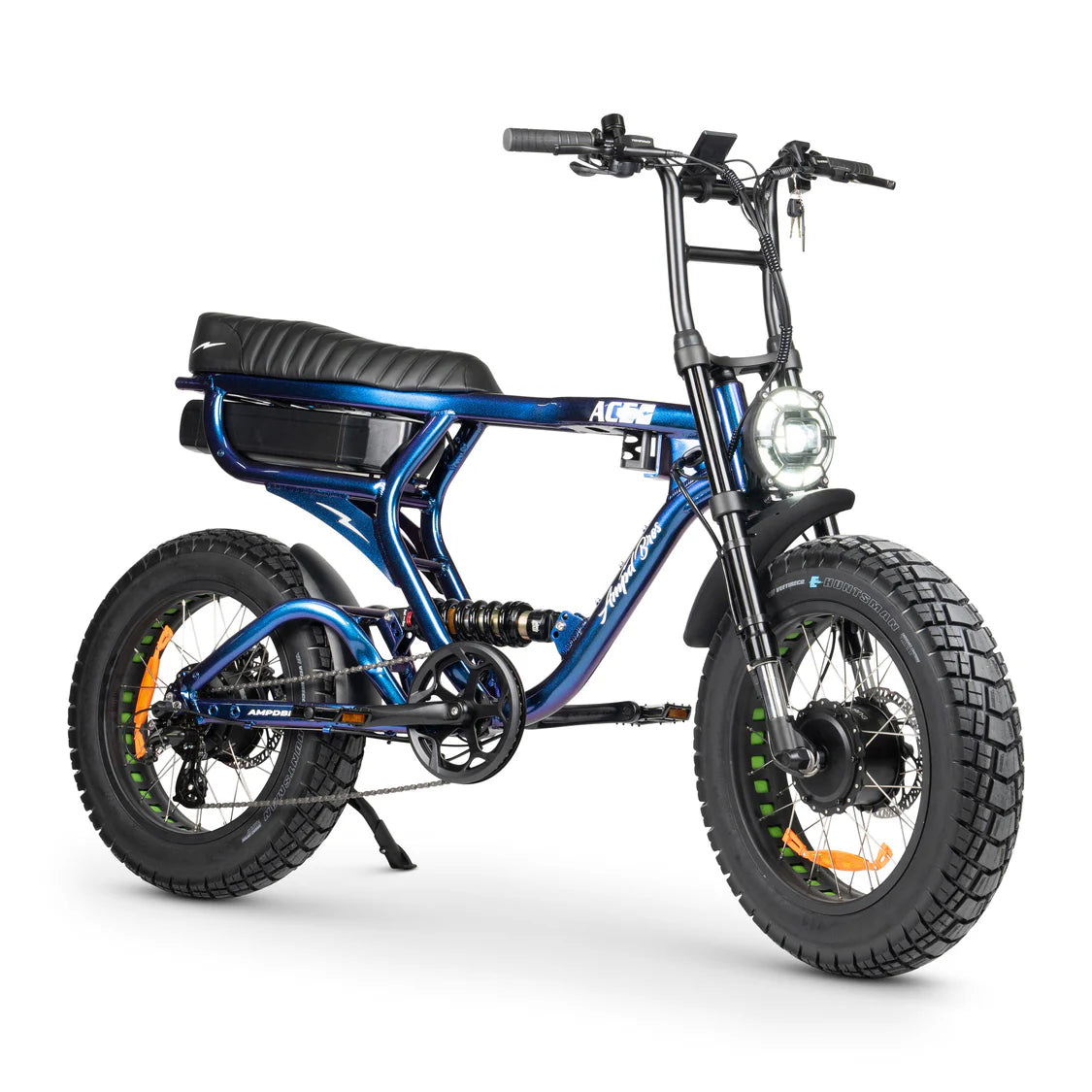

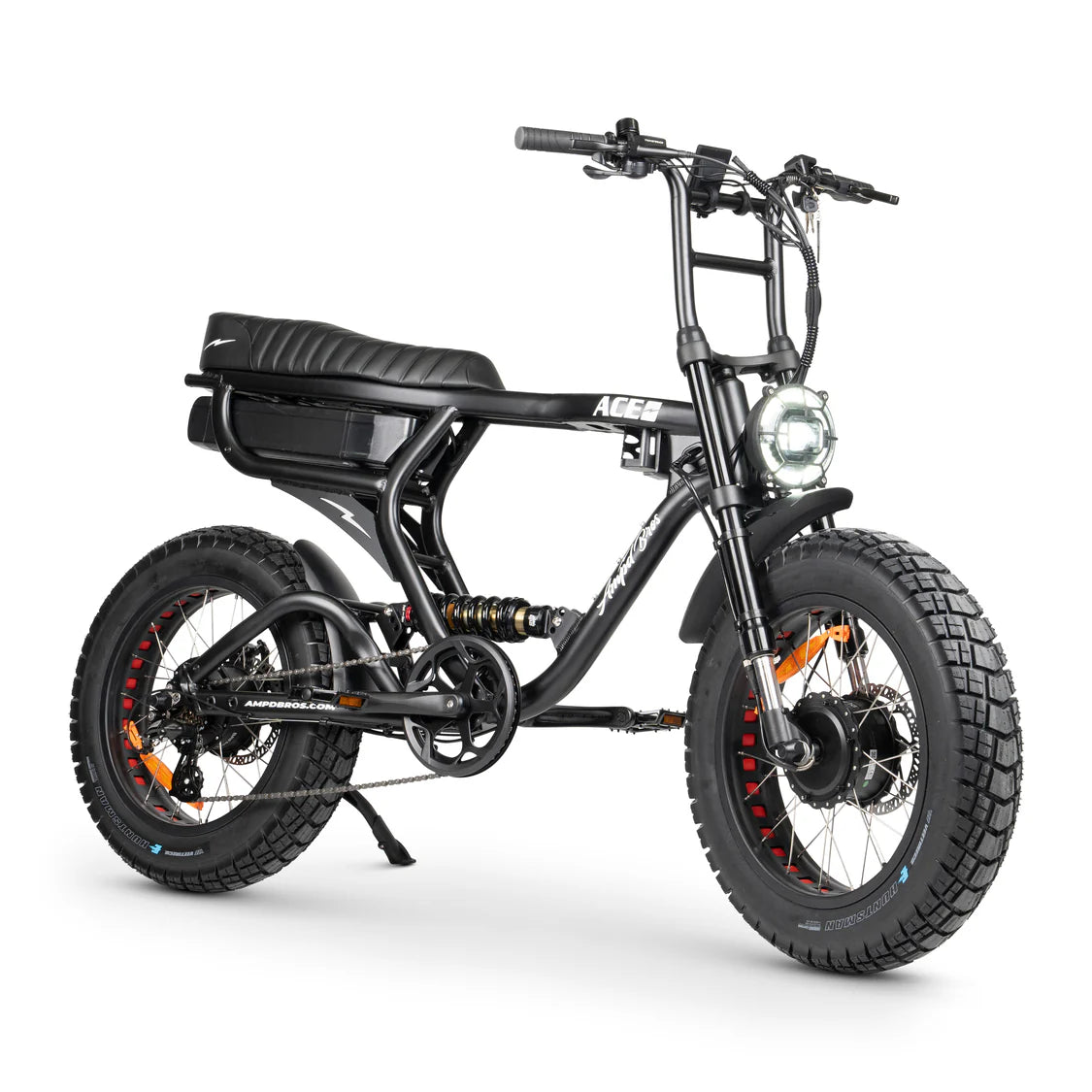

AMPD ACE-X DEMON DUAL MOTOR - OFF ROAD USE ONLY
Description
THIS ELECTRIC BIKE IS DESIGNED STRICTLY FOR OFF ROAD USE ONLY AND IS NOT BY ANY MEANS STREET LEGAL TO USE IN PUBLIC
Introducing the all 2024 NEW Series 3 - ACE-X DEMON AWD Dual Motor Electric Bike - Get ready for an exhilarating journey! Inspired by our renowned ACE-X Model Range, the ACE-X DEMON is a high-octane marvel loaded with an array of exciting features.
Diverging from its predecessor - the ACE-X PRO, the S3 DEMON is a true powerhouse. It boasts Dual 1,000W Motors, combining to produce an astonishing 2,000W of power! But there's more to it than just that - we've integrated Dual Suspension and an insanely bright 1,700 lumen Headlight, elevating your ride's comfort and visibility to unprecedented levels.
Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.
Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE range boasts a Shimano 7 Speed Derailleur, vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with a Smart BMS for optimal performance and safety.
What's New for 2024?
- NEW GEN3 Battery with Tail & Brake Lights
- Increased Battery Capacity to 25AH
- 30% Larger Battery Cells Updated to 21700 Premium Samsung Cells
- Software Enhancements to Display Controls and Design
- Revised Suspension Design now enables for Seat Height Adjustment
- Integration of Bafang's Latest Hub Motor's, featuring Improved Water Resistance
- Enhancements to Frame Design in order to allow installation of our new Rear Cargo Rack & Internal Frame Basket System
- Introduction of the All New Demon Thunderbolt Special Edition
Embark on any adventure with the ACE-X DEMON, featuring our iconic high cross bar "X" frame design, an adjustable top coffee cup/bottle holder, a spacious two-person seat, and a massive Removable Samsung Battery that delivers an astonishing range on a full charge. Combined with Bafang's High Torque Motors, your exploration knows no boundaries!
Fearlessly conquer any terrain with a staggering 190Nm of Combined Torque, whether you're tackling beaches, hills, dirt tracks, grass, or pavement! The standard Pedal Assist ensures effortless cruising, but with our Off Road Throttle Kit, you can glide effortlessly. The 7 Speed Shimano Rapid Fire trigger shifter and altus transmission provide lightning-fast gear shifts for precise control.
Crafted from lightweight aluminum, this bike not only resists rust but also effortlessly handles demanding conditions. Experience unparalleled freedom with the ACE-X DEMON - effortlessly switch between motors using the 3 Way Motor Switch! Choose to ride with the Front Motor Only, Rear Motor Only, or unleash the Dual Motors for a dominant hill-climbing performance!
Checkout the Range of Options & Accessories for your New ACE Bike or need help customising your bike? Speak to our Friendly Team on what works best for you.
KEY FEATURES:
- 25AH Samsung Battery
- Up to 100km Range
- Step Over Design Frame
- AWD Front & Rear Drive
- Dual Bafang 1,000W Motors (Total 190NM - 2,000W)
- Up to 50km/h+ (Off Road Private Property Use Only)
- Tektro Hydraulic Disc Brakes
Remember this Electric Bike is exclusively designed for Off Road Private Property Use Only.

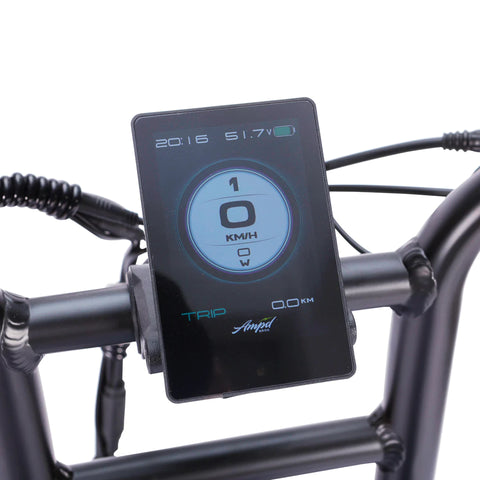

UPGRADED LCD COLOUR DISPLAY
Exclusive to Ace Pro & Demon Series only, our Custom LCD Colour display features a bunch of awesome functionality including an updated design for 2024 as well as Automatic sensing headlights, estimate range remaining, battery and motor usage and much more!

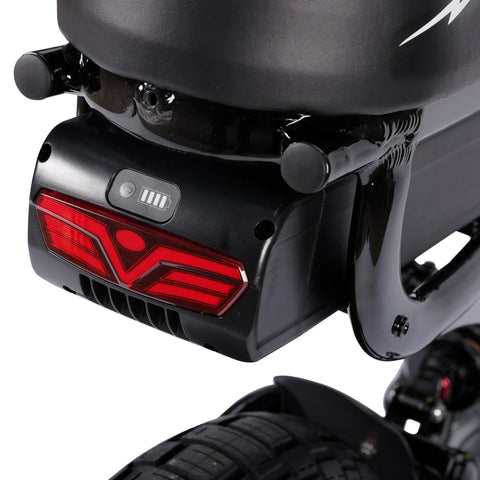

PREMIUM 21700 GEN3 BATTERY
Our latest 3rd Generation aluminium battery now features Premium Samsung 21700 Cells, improved water resistance, better docking station and a completely new BMS with Auto Sleep mode to protect your battery! It is also removable, lockable, has a battery level indicator aswell as a Brake & Tail Light function!
DUAL DRIVE BAFANG 1000W HUB MOTORS
Yep, not just one but 2 Motors! As the industries leading manufacturer of e-bike motors, it makes sense to partner with Bafang. Known for their huge levels of Torque and Performance, the 95n.m Gear Drive hub motor will challenge all expeditions with ease with a total combined output of over 2,000W! Note: For Off Road Use Only.
FRAME MOUNT TOP CUP HOLDER
A signature and an essential addition to the ACE-X model range. Carry your morning brew easily with the Frame mounted Cup Holder which is completely adjustable for those larger bottles or smaller coffee cups! Note: Not available on ACE-S Models
1,700 LUMEN PRO HEADLIGHT
Our most powerful headlight yet! The PRO headlight is exclusive only to the Ace Demon series and features a Daytime Running light as well as a powerful low beam. The Pro light is capable of 1,700 lumens output, ideal for the darkest expeditions.
Specs
SPEED & RANGE
- Range 100km* (Single Motor Only)
- Pro Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)
- Demon Top Speed Up to 50km/h+ (Off Road Private Property Use Only)
BATTERY
- Standard 48V / 1,200Wh, 25AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
RIDE MODES
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
FEATURES
- Hill Ability Up to 30º Degree / 60% Incline PAS
- Seat Custom Large Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Ace Pro Headlight Standard 220lm LED Light with DRL
- Demon Headlight Upgraded PRO Front LED 1,700lm Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Velo Wide Comfort
- Bell Yes
BRAKES
- Standard Tektro Hydraulic Disc
- Discs 180mm
- E-Brakes Yes Motor Safety Cut Off
DISPLAY
-
Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
CONTROLLER
-
Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
DRIVETRAIN
- Motor Type Bafang RMG 062D & 063D Latest Generation (Released 2023)
- Ace Pro Motor Single Rear Hub Drive 1,000W
- Ace Demon Motors AWD Dual Drive Hub 1,000W Motors Front & Rear (2,000W Total)
- Ace Pro Torque High Torque 95n.m
- Ace Demon Torque High Torque 190n.m (Combined)
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
CONSTRUCTION
- Frame Aluminium - "X" Step Over Bar Design
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
SUSPENSION
- Standard Front Independent & Rear Adjustable DNM
WHEELS & TYRES
- 20x4.0" Kenda Krusade Fat Mud Tyres
CHARGING
- 12hrs+ 25Ah Batteries with Standard 2A Included Charger
- Optional 5A Fast Charger Available
DIMENSIONS
- Overall Length 1,800 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 850 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
WEIGHTS
-
N.W of 21Ah Battery 5.06kg
- N.W of Bike 45 kg
- Max Loading 150 kg
INCLUSIONS
-
In Box Bike, 48V Battery, 2A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
